BenQ Projector Model WDC10 (Wireless / Plug and Play)
| Color | Black |
| Support Platform | Windows, MAC, Chrome. Any OS supports HDMI standard 1.4 |
| Video Outputs | HDMI 1.4, comply with HDCP |
| Frame Rate | Up to 60 fps depending on environment |
| Output Resolution | 800 x 600, 1280×720 (720P),1024 x 768 (XGA),1280 x 768,1280×800(WXGA),1280 x 1024,1280 x 960,1360 x 768,1440 x 900,1400 x 1050,1680 x 1050, 1920×1080 (1080p) |
| Input Resolution | Up to 1920×1080 |
| Simultaneous Connections | 16 pcs |
| Audio | Stereo, Radio quality 16 bits 48KHz |
| Wireless | IEEE 802.11ac, 5GHz, 2T2R |
| Data Rate Wireless | Up to 867Mbps |
| Authentication Protocol | WPA2 (WPA2-PSK (Pre-Shared key) / WPA2-Enterprise) |
| Security (encryption ) | AES 128 bit |
| Reach | Max. 8m between InstaShow Button and InstaShow Host |
| Temperature Range | Operating: 0°C to +40°C (+32°F to +104°F) Storage: -10°C to +60°C (+14°F to +140°F) |
| Humidity | Operation: 10% to 80% relative humidity, non-condensing Storage: 5% to 90% relative humidity, non-condensing |
InstaShow Package  |
|
| InstaShow Button | x2 |
| InstaShow Host | x1 |
| Cradle | x1 |
| USB Power Cable | x1 (150cm, USB Type A 3.0, micro USB) |
| HDMI Cable | x1 (80cm) |
| USB Extended Cable | x1 (15cm), x1 (80cm) |
| Antenna | x2 (Black) |
| Adapter | x1 |
| Velcro Strap (black) | x1 |
| Quick Start Guide | x1 |
| Safety Statement | x1 |
| Double-side Sponge Tap | x1 |
| Rubber Feet | x4 |
| Screws | x4 |

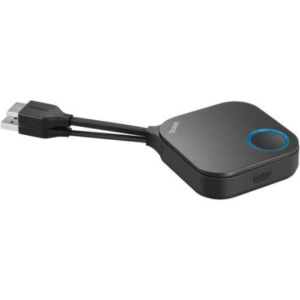

| InstaShow Button |
|
| Cable | USB Type A, HDMI Cable |
| Reset Button | x1 |
| Mode Key | x1 |
| LED | *Red (boosting), Green (wifi connected), Blue (presenting) |
| Power Supply | DC 5V±10%, 0.9A |
| Power Consumption | Normal: 4.5W |
| Dimensioin (WxHxD) | 84.5×189.55×19.9mm |
| Weight | 100g |

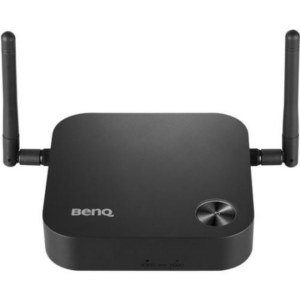

| InstaShow Host |
|
| Power Button | x1 |
| Paring Key | x1 |
| LAN | x1(10/100 Mbps) |
| Video Output | x1 HDMI 1.4 (video and audio) |
| LED | *Red (boosting), Green (ready for connection), Blue (presenting) |
| DC Power Jack | x1 (micro USB) |
| Power Supply | DC 5V±10%, 1.5A |
| Power Consumption | Normal: 5W Network standby: 2W HDMI standby: 0.02W |
| Dimension (WxHxD) (not include rubber feet) | 110x110x27mm (99mm with antenna), (not include rubber feet) |
| Weight (with antenna) | 150g |
| InstaShow Cradle |
|
| Dimension (WxHxD) | 85×97.5×170.4 mm |
| Weight | 630g |
| Optional: InstaShow Button Kit |
|
| InstaShow Button | x2 |
| Cradle | x1 |
| USB Extended Cable | x1 (15cm), x1 (80cm) |
| Quick Start Guide | x1 |
| Safety Statement | x1 |
