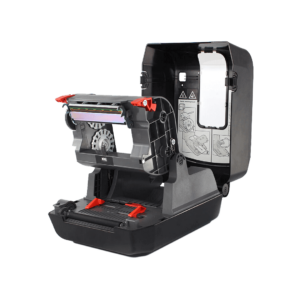

HONEYWELL PC42T Plus เครื่องพิมพ์บาร์โค้ด 203DPI
Specifications |
|
MECHANICAL |
|
| Dimensions (LxWxH) | 297 mm x 226 mm x 175 mm (11.7 in x 8.9 in x 6.9 in) |
| Weight | 2.5 kg (5.5 lbs) |
PRINTING |
|
| Print Resolution | 8.0 dpmm (203 dpi) |
| Max. Print Speed | 125 mm/s (5.0 ips) |
| Default Print Speed | 100 mm/s (4.0 ips) |
| Max. Print Width | 104.1 mm (4.1 in) |
MEMORY |
|
| Standard | 64 MB Flash, 64 MB SDRAM |
| Optional | Up to 32 GB (via user-supplied USB thumb drive) formatted as FAT16 or FAT32 |
USER INTERFACE |
|
| Display | 1 Feed Button and LED Display |
| Web Page Languages | English and Simplified Chinese (Default), Spanish, Portuguese, Russian, Korean, Japanese, Thai |
GRAPHICS & BAR CODES |
|
| Native Graphic Formats | 1-bit BMP, GIF, PCX, PNG |
| Barcode Symbologies | All major 1D and 2D symbologies are supported, including Aztec, Code 16K, Code 49, Data Matrix, Dot Code, EAN-8, EAN13, EAN, UCC 128,
Grid Matrix, HIBC 39, HIBC 128, MaxiCode, MSI (modified Plessey), PDF417, Micro PDF417, Planet, Plessey, Postnet, QR-Code, RSS-14 (variations) |
MEDIA |
|
| Max. Media Diameter | 127.0 mm (5.0 in) |
| Media Core Sizes | 25.4 mm (1.0 in), 38.1 mm (1.5 in) |
| Media Width | 25.4 mm (1.0 in) to 110 mm (4.3 in) |
| Label Length | 9.6 mm – 99 cm (0.34 in – 39 in) |
RIBBON |
|
| Ribbon Support | Coated Side Out |
| Max. Ribbon Diameter | 68.0 mm (2.7 in) |
| Ribbon Core Sizes | 12.7 mm (0.5 in), 25.4 mm (1.0 in) |
| Ribbon Width | 30 mm (1.2 in) to 110 mm (4.3 in) |
| Max. Ribbon Length | 25.4 mm (1.0 in) core: 300 m (984 ft); 12.7 mm (0.5 in) core: 75 m (246 ft) |
| ENVIRONMENTAL | |
| Operating Temperature | +5°C to +40°C (+41°F to +104°F) @ 10 to 80% RH non-condensing |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) @ 10 to 90% RH |
| ELECTRICAL | |
| Input | 100–240V AC @ 50–60 Hz, 1.5 A |
| Output | 24V DC, 2.5 A |
| WARRANTY | One-year warranty on printer, One-year warranty on printhead |
