MSI M/B PRO B660M-G DDR4
คุณสมบัติ MAINBOARD (1700) MSI PRO B660M-G DDR4
คุณสมบัติ MAINBOARD (1700) MSI PRO B660M-G DDR4| Brand | MSI |
| Model | PRO B660M-G DDR4 |
| CPU Support | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 |
| Socket | 1700 |
| Chipset | Intel B660 |
| Memory Support | 2x DDR4 memory slots, support up to 64GB Supports ADL-s 1R 2133/2666/2933/3200 MHz – 1DPC 1R Max speed up to 4600+ MHz – 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Memory Type | DDR4 |
| Memory Bus | 2133 / 2666 / 2933 / 3200 MHz |
| Memory Slot | 2 Slots |
| Graphics | 1x VGA port, supports a maximum resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Multi Graphic Support | None |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | 1x PCIe 4.0 x16 slot (from CPU) 1x PCIe 3.0 x1 slot (from B660 chipset) |

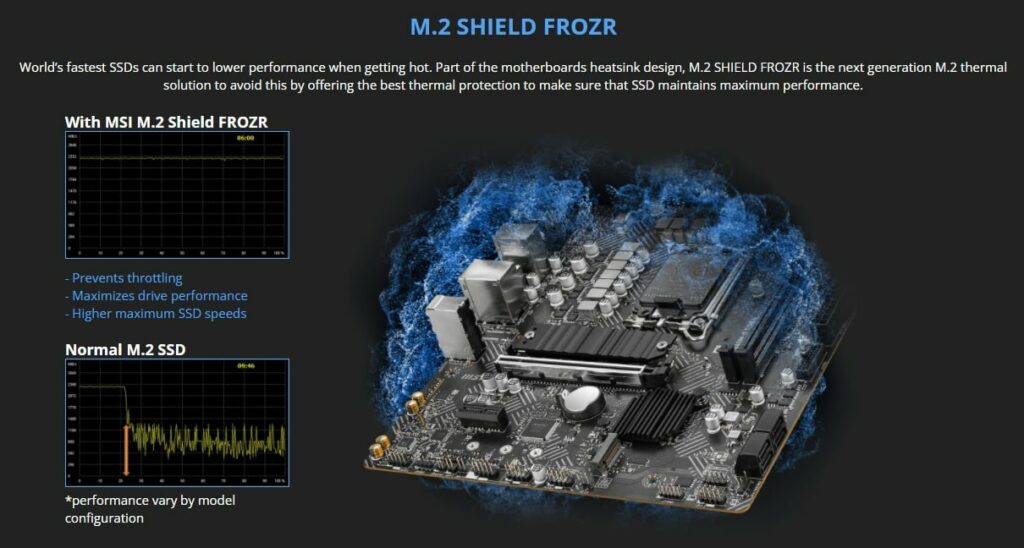

| Storage | 4x SATA 6Gb/s ports (From B660 chipset)* 2x M.2 slots (Key M) M2_1 slot (From CPU) – Supports PCIe 4.0 x4 – Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset)* – Supports PCIe 4.0 x4 – Supports SATA 6Gb/s – Supports 2242/ 2260/ 2280 storage devices – Supports Intel® Optane™ Technology SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. *Intel® Optane™ Memory Ready. Before using Intel®® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| USB | Intel® B660 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 2x USB 2.0 Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connector (support additional 4 USB ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 2x 4-pin system fan connectorx 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x JRGB 2x JRAINBOW 1x Tuning Controller Connector |
| Back Panel Connectors | 1x VGA 1x Keyboard / Mouse 1x LAN port 3x Audio connector 1x HDMI 1x DisplayPort 2x USB 2.0 4x USB 3.2 Gen 1 5Gbps Type-A |
| LAN | 1x Realtek® RTL8125BG 2.5Gbps LAN controller |
| Wireless Data Network | None |
| Form Factor | M-ATX Form Factor 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm) |
| H/W Monitoring | N/A |
| BIOS | N/A |
| Special Features | N/A |
| Software Features | N/A |
| Operating System Support | N/A |
