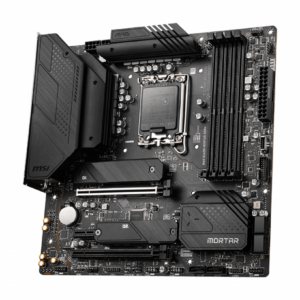

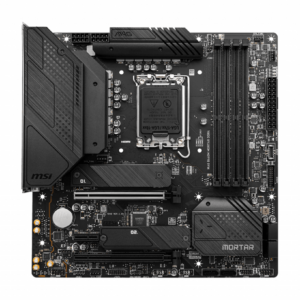

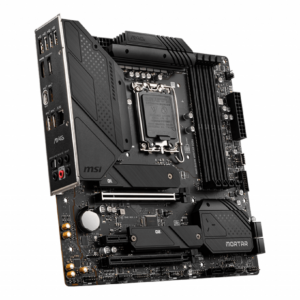

M/B MSI MAG B660M MORTAR DDR4
| Brands | MSI |
|---|---|
| Support CPU |
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset |
Intel® B660 Chipset |
| From Factor |
micro ATX |
| Memory Chanel | Dual Channel DDR4 4DIMM |
| Ram Bus MHz | 2133~4800(OC) Max 128GB |
| VGA ON BOARD | 1 x DisplayPort 1.4 1 x HDMI™ 2.1 (4K@60Hz) *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support max. 4K@60Hz as specified in DisplayPort 1.4. *** Support 4K@60Hz as specified in HDMI 2.1. |
| Storage | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)1 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M)M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devicesM2_2 slot (From B660 Chipset)1 Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ MemorySATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| Expansion Slots |
2x PCIe x16 slots
PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x41x PCIe 3.0 x1 slot |
| INTERNAL I/O PORT |
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
| Rear Panel I/O |
1 x PS/2 keyboard/mouse port
1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks |
| Rear USB Port | 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 4 x USB 2.0/1.1 ports |
| Warranty | 3 Year |
