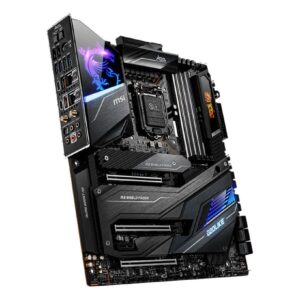

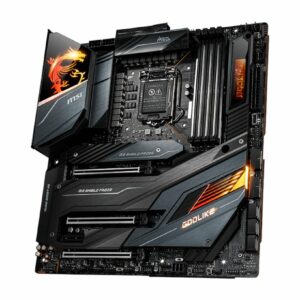

M/B MSI MEG Z490 GODLIKE
คุณสมบัติ (1200) MSI MEG Z490 GODLIKE
| Brand | MSI |
| Model | MEG Z490 GODLIKE |
| CPU Support | Supports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 socket |
| Socket | 1200 |
| Chipset | Intel Z490 |
| Memory Support | 4 x DDR4 memory slots, support up to 128GB Supports 1R 2133/2666/2933 MHz – 1DPC 1R Max speed up to 5000+ MHz – 1DPC 2R Max speed up to 4400+ MHz – 2DPC 1R Max speed up to 4400+ MHz – 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Graphics | Intel® JHL7540 Thunderbolt™ 3 Controller 2x Thunderbolt™ 3 (Type-C) ports on the back panel Supports Thunderbolt™ 3 with a maximum resolution of 5120×2880 @60 Hz* Supports DisplayPort 1.4 with a maximum resolution of 4096×2304 @60 Hz Maximum shared memory is 1GB * Thunderbolt 3 supports two displays in 4K resolution or one display in 5K resolution. |
| Multi Graphic Support | Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology |
| Audio | Realtek® ALC1220 Codec + ESS E9018 combo DAC 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| Expansion Slots | 3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode 1x PCIe 3.0 x1 slot |
| Storage | Intel® Z490 Chipset 6x SATA 6Gb/s ports*/** 3x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices* M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices** M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready*** Supports Intel® Smart Response Technology for Intel Core™ processors * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| USB | Intel® Z490 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia® ASM1074 Chipset Intel® JHL7540 Thunderbolt™ 3 Controller |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connectors 1x TPM module connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector |
| Back Panel Connectors | 1x Clear CMOS Button 2x PS/2 Keyboard / Mouse Port 4x USB 3.2 Gen1 5Gbps (Type-A) 1x 2.5G LAN 1x 10G Super LAN 2x Wi-Fi /Bluetooth Antenna Connectors 5x HD Audio Connectors 1x Flash BIOS Button 2x USB 2.0 2x Thunderbolt 3 (40Gbps) 2x USB 3.2 Gen2 10Gbps (Type-A) 1x Optical S/PDIF-Out |
| LAN | 1x Aquantia® AQC107 10G LAN controller 1x Realtek® RTL8125B 2.5G LAN controller |
| Wireless Data Network | Intel® AX201 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot |
| Form Factor | 12 in. x 10.9 in. (30.5 cm x 27.7 cm) E-ATX Form Factor |
| H/W Monitoring | N/A |
| BIOS | N/A |
| Special Features | N/A |
| Software Features | N/A |
| Operating System Support | Support for Windows® 10 64-bit |
| Dimension | (W x D x H) : 27.70 x 30.50 x 5.00 cm |
| Net Weight | 1.67 KG |
| Package Dimension | (W x D x H) : 30.00 x 35.00 x 11.00 cm |
| Gross Weight | 3.48 KG |
| Volume | 11,550.00 cm3 |
