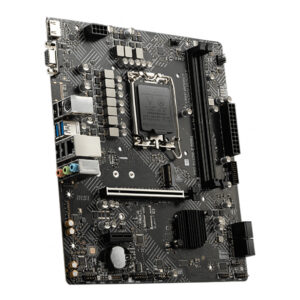

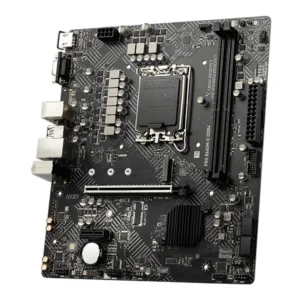

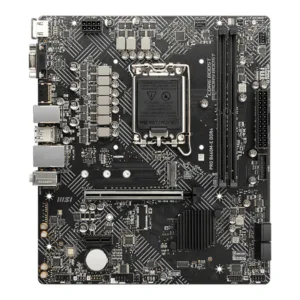

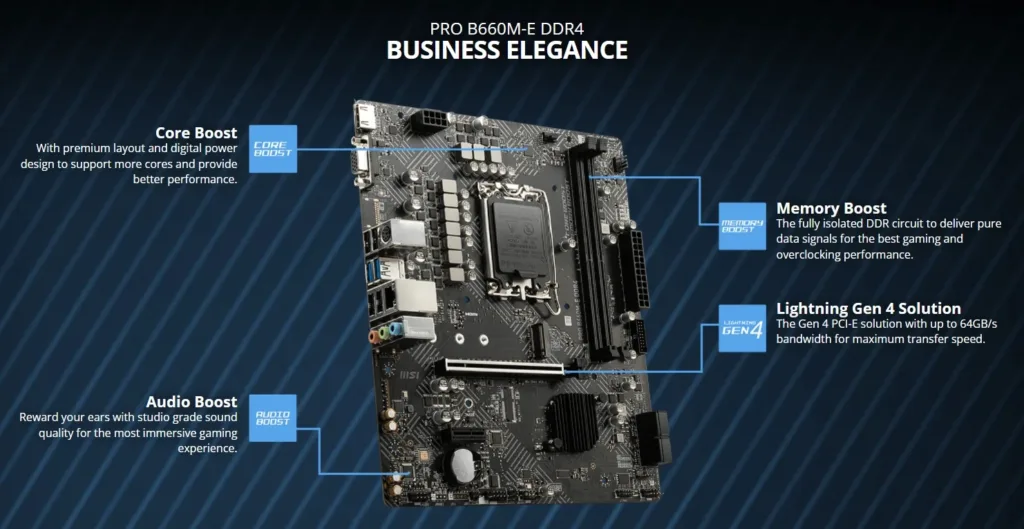

MSI M/B PRO B660M-E DDR4
คุณสมบัติ MAINBOARD (1700) MSI PRO B660M-E DDR4
| Brand | MSI |
| Model | PRO B660M-E DDR4 |
| CPU Support | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 |
| Socket | 1700 |
| Chipset | B660 |

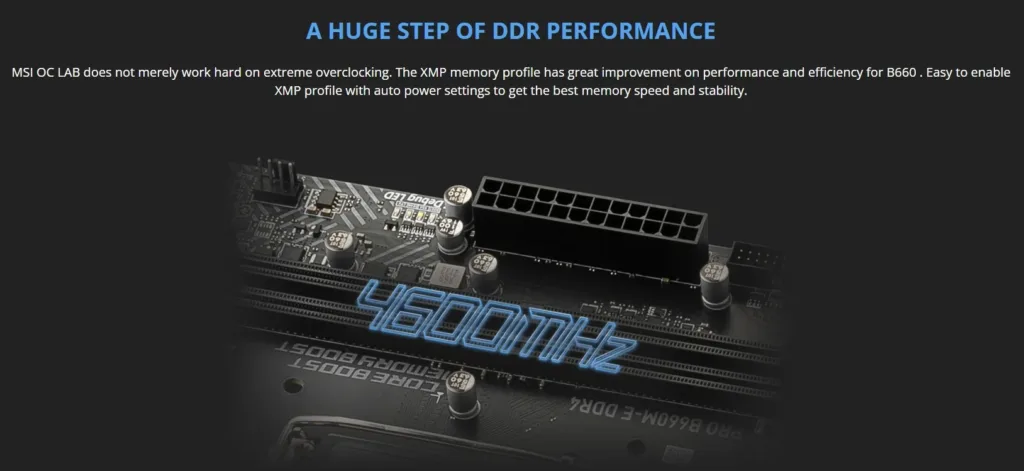

| Memory Support | 2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: – 1DPC 1R Max speed up to 4600+ MHz – 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Memory Type | DDR4 |
| Memory Bus | 2133 / 2666 / 2933 / 3200 MHz |
| Memory Slot | 2 Slots |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| Multi Graphic Support | None |
| Audio | Realtek® ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |

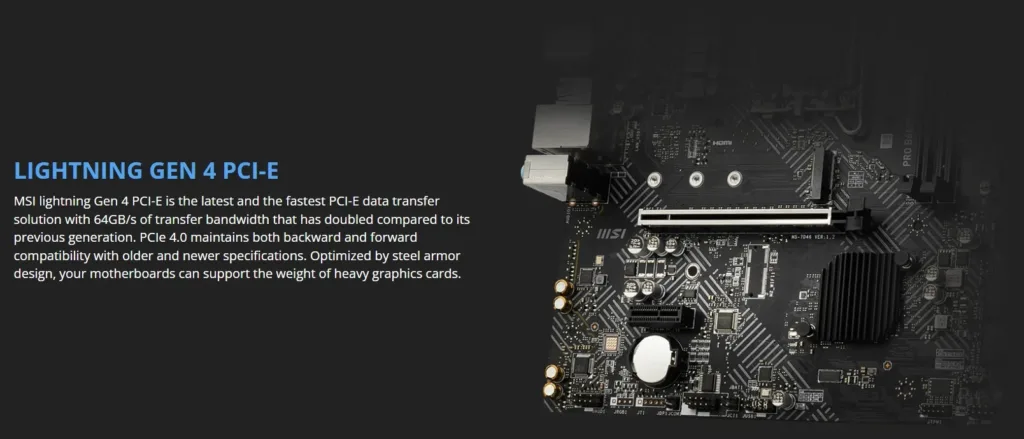

| Expansion Slots | 1x PCIe x16 slot (From CPU) – Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From B660 chipset) – Supports PCIe 3.0 x1 |
| Storage | 4x SATA 6Gb/s ports (From B660chipset)* *SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.1x M.2 slot (Key M, from B660 chipset)** Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors **SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | Intel® B660 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper |

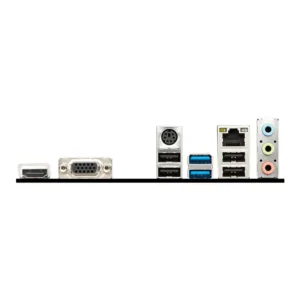

| Back Panel Connectors | 1x HDMI 1x VGA 1x Keyboard / Mouse 2x USB 3.2 Gen 1 5Gbps Type-A 1x LAN port 3x Audio connector 4x USB 2.0 |
| LAN | 1x Intel® I219V 1Gbps LAN controller |
| Wireless Data Network | None |
| Form Factor | M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm) |
| H/W Monitoring | N/A |
| BIOS | N/A |
| Special Features | N/A |
| Software Features | N/A |
| Operating System Support | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Dimension | (W x D x H) : 21.10 x 24.40 x 3.70 cm |
| Net Weight | 0.47 KG |
| Package Dimension | (W x D x H) : 26.00 x 26.00 x 5.60 cm |
| Gross Weight | 0.76 KG |
| Volume | 3,785.60 cm3 |
