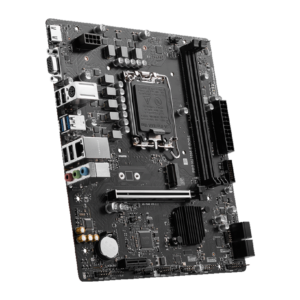

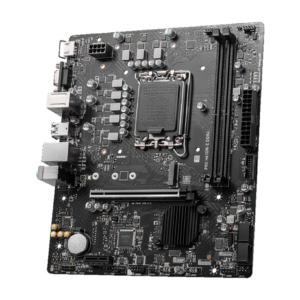

MSI M/B PRO B660M -A WIFI DDR4
คุณสมบัติ MAINBOARD (1700) MSI PRO B660M-P DDR4
| Brand | MSI |
| Model | PRO B660M-P D4 |
| CPU Support | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700 Please go to msi.com to get the newest support status as new processors are released
|
| Socket | 1700 |
| Chipset | B660 |
| Memory Support | 4x DDR4 memory slots, supporting up to 128GB1
Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency:1DPC 1R Max speed up to 4600+ MHz1DPC 2R Max speed up to 4000+ MHz – 2DPC 1R Max speed up to 4000+ MHz – 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory. |
| Graphics | 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz
1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Multi Graphic Support | None |
| Audio | Realtek® ALC897 Codec
7.1-Channel High Definition Audio |
| Expansion Slots | 1x PCIe x16 slot
PCI_E1 (From CPU) Supports up to PCIe 4.0 x16 2x PCIe x1 slotsPCI_E2 & PCI_E3 (Fom B660 chipset) Supports up to PCIe 3.0 |
| Storage | 4x SATA 6Gb/s ports (From B660 chipset) ?????
1x M.2 slot (Key M)M2_1 slot (From B660 Chipset) Supports up toPCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)
1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper |

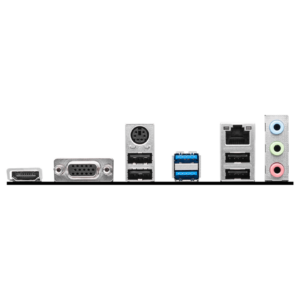

| Back Panel Connectors | 1x VGA
1x DisplayPort 1x HDMI 1x Keyboard / Mouse 4x USB 2.0 1x LAN port 3x Audio connectors 1x USB 3.2 Gen 2 10Gbps Type-C 1x USB 3.2 Gen 1 5Gbps Type-A |
| LAN | 1x Realtek® RTL8111H 1Gbps LAN controller |
| Wireless Data Network | None |
| Form Factor | M-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| H/W Monitoring | N/A |
| BIOS | 1x 256 Mb flash
UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language |
| Special Features | N/A |
| Software Features | N/A |
| Operating System Support | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Dimension | (W x D x H) : 24.40 x 24.40 x 4.00 cm |
| Net Weight | 0.56 KG |
| Package Dimension | (W x D x H) : 28.00 x 27.00 x 6.50 cm |
| Gross Weight | 0.92 KG |
| Volume | 4,914.00 cm3 |
