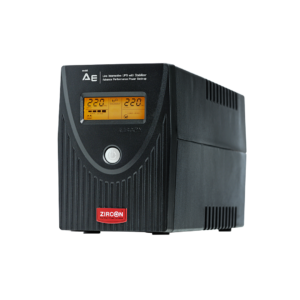

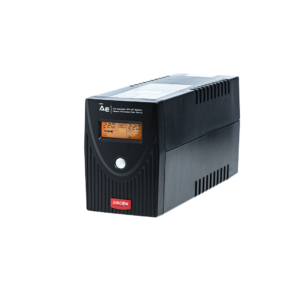

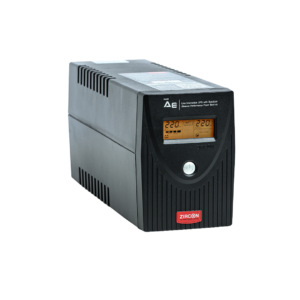

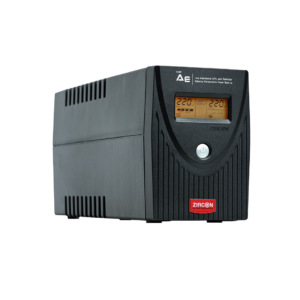

Zircon Line Interactive UPS AE_1000VA/550W
Specifications
| Rating | VA WATT |
1000VA 550W |
| Input | Voltage Frequency |
220 VAC +/-25% 50/60Hz. +/-10% (Auto Sensing) |
| Output | Voltage Frequency Wave Form |
220 VAC +/-10%(AVR), +/-5%(Battery) 50Hz. +/-0.1% Sine Wave In Normal Condition Modified Sine Wave In Backup Condition |
| System Protection | System Design Transfer Time Surge Energy Dissipation Noise Filter Overload & Short Circuit |
Line Interactive UPS with Stabilizer, Microprocessor Control Typical 2 ms. 320 Joules (6500A) EMI Suppression Reset Fuse Protection |
| Battery | Type Recharge Time Backup Time |
Maintenance Free Sealed Lead-acid Battery 4-6 Hours (90% After Fully Discharged) Backup Time 15-30 Min. (Depend on loads) |
| Indicator | LCD Display | AC Mode, Battery Mode, Input Voltage, Output voltage, Battery Level, Charging Battery, Load Level, Low Battery, Overload, Fault & Battery Replace |
| Environment | Ambient Temperature Audible Noise Relative Humidity Safety Electromagnetic Compatibility |
0 to +40 ºC
< 40db(1 Meter) 90% (Non-Condensing) IEC/EN62040-1;IEC/EN60950-1 IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;
IEC61000-4-6;IEC61000-4-8
|
| Standard | Regular Approvals | TISI1291:2553, 2555, ISO9001:2015, ISO14001, CE, FCC, RoHS |
| Dimensions | WxDxH (mm.) | 298x101x142 |
| Weight | Kilogram | 4.5 kg. |
