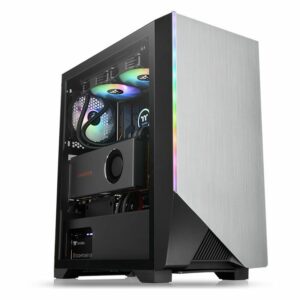

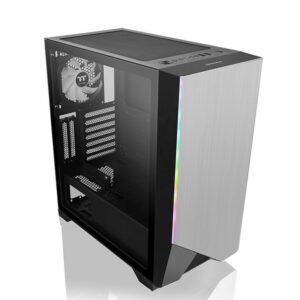

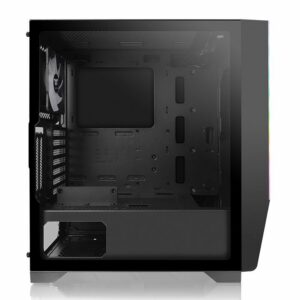

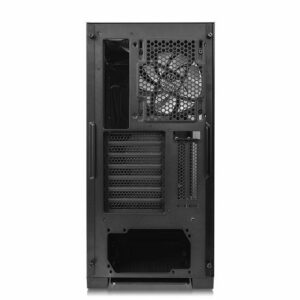

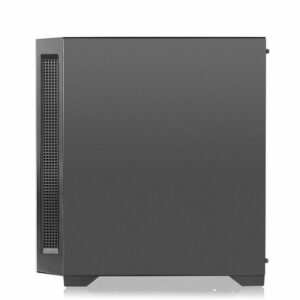

THERMALTAKE CASE H550 TG ARGB
SPECIFICATION
| P/N | CA-1P4-00M1WN-00 |
|---|---|
| SERIES | H Series |
| MODEL | H550 TG ARGB |
| CASE TYPE | Middle tower |
| DIMENSION (H X W X D) | 441 x 225 x 472 mm (17.36 x 8.85 x 18.58 inch) |
| NET WEIGHT | 7.65 kg / 16.87 lb |
| SIDE PANEL | 4mm Tempered Glass x1 |
| COLOR | Exterior & Interior : Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Rear (exhaust) : 1 x 120 x 120 x 25mm Addressable RGB fan (1000rpm, 27.2 dBA) |
| DRIVE BAYS -ACCESSIBLE -HIDDEN |
|
| EXPANSION SLOTS | 7+2 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O PORT | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, RGB Switch x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm Rear: 1 x 120mm, 1 x 140mm |
| RADIATOR SUPPORT | Front: 1 x 280mm, 1 x 360mm Top: 1 x 240mm Rear: 1 x 120mm |
| CLEARANCE | CPU cooler height limitation: 165mm PSU length limitation: 160mm(With HDD Rack) 200mm(Without HDD Rack) VGA length limitation: 300mm VGA width limitation(Vertically): 45mm RAM height limitation: 40mm(With radiator series) |
