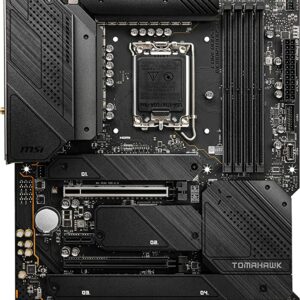

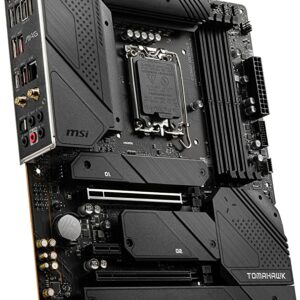

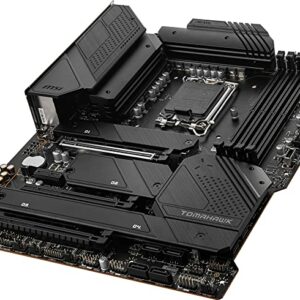

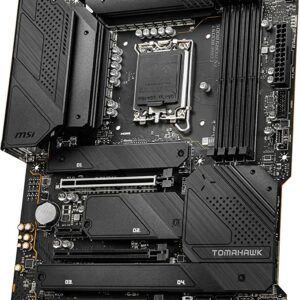

M/B MSI MAG Z690 TOMAHAWK WIFI
คุณสมบัติ MAINBOARD (1700) MSI MAG Z690 TOMAHAWK WIFI DDR4
| Brand | MSI |
| Model | MAG Z690 TOMAHAWK WIFI D4 |
| CPU Support | Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors Processor socket LGA1700 |
| Socket | 1700 |
| Chipset | Intel Z690 |
| Memory Support | 4 x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: – 1DPC 1R Max speed up to 5200+ MHz – 1DPC 2R Max speed up to 4800+ MHz – 2DPC 1R Max speed up to 4400+ MHz – 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Graphics | 1 x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
| Multi Graphic Support | Supports AMD® CrossFire™ Technology |
| Audio | Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | 3 x PCIe x16 slots PCI_E1 (From CPU) Support up to PCIe 5.0 x16 PCI_E3 (From Z690 chipset) Support up to PCIe 3.0 x4 PCI_E4 (From Z690 chipset) Support up to PCIe 3.0 x1 1 x PCIe 3.0 x1 slot (From Z690 chipset) |
| Storage | 6 x SATA 6Gb/s ports (From Z690 chipset) 4 x M.2 slots (Key M) M2_1 slot (From CPU) – Supports up to PCIe 4.0 x4 – Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset) – Supports up to PCIe 4.0 x4 – Supports 2242/ 2260/ 2280 storage devices M2_3 slot (From Z690 chipset) – Supports up to PCIe 3.0 x4 – Supports up to SATA 6Gb/s – Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z690 chipset) – Supports up to PCIe 4.0 x4 – Supports up to SATA 6Gb/s – Supports 2242/ 2260/ 2280 storage devices – Intel® Optane™ Memory Ready for M.2 slots from Z690 Chipset Supports Intel® Smart Response Technology for Intel Core™ processors |
| USB | Intel® Z690 Chipset 1 x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 4 x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel) 4 x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector) 1 x USB 2.0 Type-A port on the back panelHub-GL850G 5 x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 6 x SATA 6Gb/s connectors 4 x M.2 slots (M-Key) 1 x USB 3.2 Gen 2 10Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Clear CMOS jumper 1 x TBT connector (supports RTD3) 1 x Tuning Controller connector |

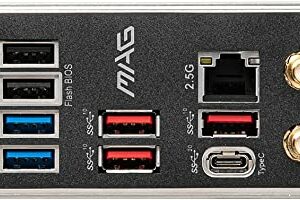

| Back Panel Connectors | 1 x DisplayPort 1.4 1 x HDMI 2.1 2 x USB 2.0 2 x USB 3.2 Gen 2 10Gbps Type-A 2 x USB 3.2 Gen 1 5Gbps Type-A 1 x USB 3.2 Gen 2 10Gbps Type-A 1 x USB 3.2 Gen 2×2 20Gbps Type-C 1 x 2.5G LAN Port 1 x Wi-Fi / Bluetooth Antenna 5 x HD Audio Connectors 1 x Flash BIOS Button 1 x ptical S/PDIF OUT |
| LAN | 1 x Intel® I225V 2.5Gbps LAN controller |
| Wireless Data Network | Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| H/W Monitoring | N/A |
| BIOS | N/A |
| Special Features | N/A |
| Software Features | N/A |
| Operating System Support | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Dimension | (W x D x H) : 24.40 x 30.50 x 4.80 cm |
| Net Weight | 1.47 KG |
| Package Dimension | (W x D x H) : 27.00 x 34.00 x 7.20 cm |
| Gross Weight | 2.15 KG |
| Volume | 6,609.60 cm3 |
